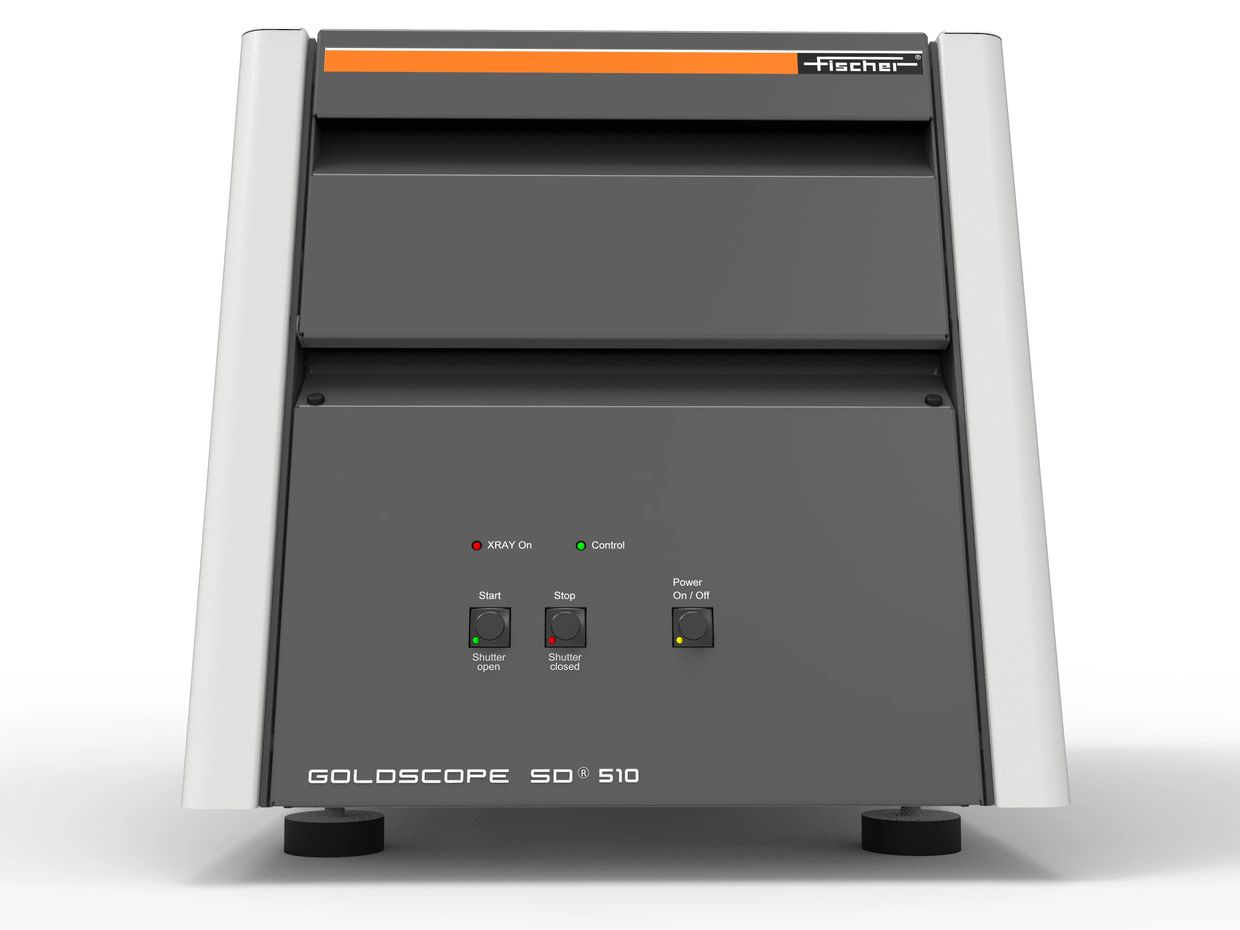

GOLDSCOPE SD 510
Cost effective precise Gold Tester
X-Ray Fluorescence Measuring Instrument Optimized for Fast, Cost-effective and Non-destructive Analysis
of Jewellery, Coins and Precious Metals for Jewellery Retail Store, Banks and Gold Exchange.
The Goldscope SD 510 come with a Silicon-Pin detector which provides a precise analysis of Gold Jewellery along with detection of PGM group elements such as Iridium, Ruthenium and other metals.
The GOLDSCOPE SD 510 is the cost-effective entry-level X-ray fluorescence Gold Testing Machine for non-destructive analysis of jewellery, coins and precious metals. It is wdiely being used in Jewellery Retails stores, Banks and Cash for Gold Business. Furthermore, the instruments are well suited for determining the thickness of gold coatings on sterling silver and rhodium coatings on gold alloys.
The GOLDSCOPE series comprises four different instruments to fulfill the specific demands from the fast purchase and sale of gold up to the high-precision analysis of precious metals.
Typical fields of application are the analysis of:
- Gold Jewellery and ornaments
- Gold alloys
- Rhodium coated gold and silver alloys
- Platinum alloys, if they do not contain gold
- Well suited for Jewellery Retail Store, Banks, Gold Exchange, Pawn Shop and Cash for Gold Business
Features
- Detector : Silicon PIN ( SI-PIN) detector with peltier cooling
- Aperture (Collimator) : Ø 1 mm (39 mils)
- Element range : Sulfur (16) to Uranium (92) – up to 24 elements simultaneously
- Design: Bench top unit with front opening hood
- Repeatability : ≤ 1 ‰ for gold
- Measurement time : 30 seconds
