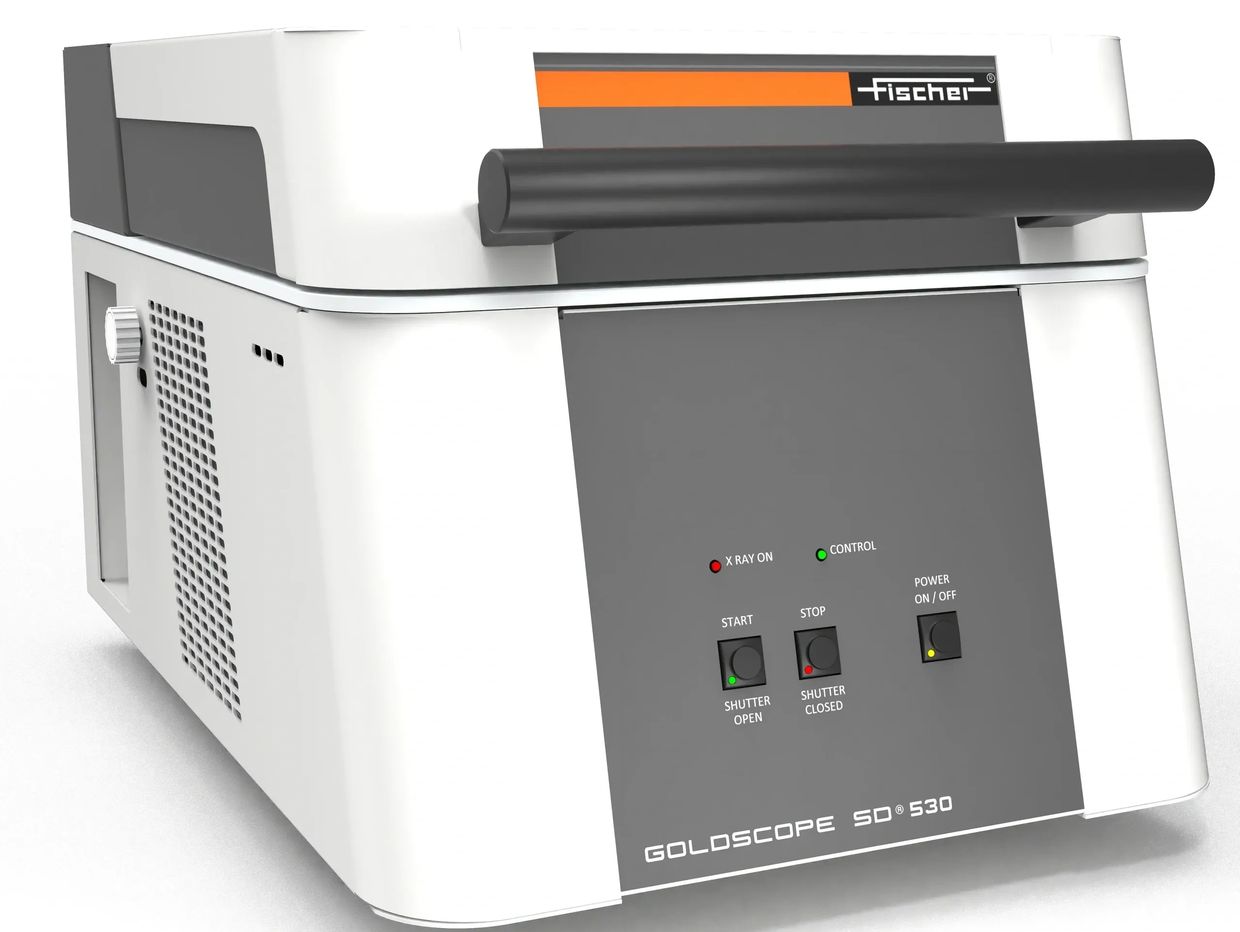

Gold testing machine GOLDSCOPE SD 530 - DPP+

High-Performance X-Ray Fluorescence Measuring Gold Testing Machine for fast and non-destructive Analysis and

Coating Thickness Measurement of Gold and Silver Alloys.

With the modern Silicon Drift Detector ( SDD) along with with first-in-class DPP+ , the Goldscope SD 530 achieves a very high accuracy and good detection sensitivity. This machine is well suited at places where accuracy and repeatability is utmots important. Fischer Goldscope SD 530 is widely being used in Hallmarking Centres, Gold Refineries, Testing and Assaying Centres with great precision.

Typical fields of application are the analysis of:

• Gold Jewellery, Melted Gold
• Hallmarking Centres, Gold Refinery, Manufacturing, Tunch and Assaying centres
• Silver Testing
• Yellow and white gold
• Multi-Layer coatings

Features

• Detector :  Silicon Drift Detector (SDD), peltier-cooled
• Aperture (Collimator) : 2x changeable:  Ø 0.6 mm (23.6 mils), Ø 2 mm (78.7 mils).
• Element range : Aluminium (13) to Uranium (92) – up to 24 elements simultaneously
• Design: Bench top unit with upward opening hood
• Repeatability : ≤ 0.5 ‰ for gold
• Measurement time :  15 seconds
• DPP+ for highly precise and fast analysis of precious metals
